Lead Resistance

The earliest and most commonly used resistors are widely used in various products. They are inexpensive, stable in quality, and highly reliable.

The earliest and most common carbon film is the main body, and the coating is changed to non-combustible insulating paint to improve the fire resistance. It is an extended product of carbon film resistors.

Derivative products of resistors use the characteristics of the resistive layer to protect other parts from damage when the circuit is abnormally high voltage occurs, and the resistor is disconnected or the impedance is increased.

Inheriting the precision and low temperature coefficient characteristics of the precision metal film, the insulating layer is changed to a non-combustible material to increase the non-combustible characteristics.

High impedance, high power, high working voltage, resistance to pulse surge load, high temperature resistance, high humidity resistance resistor
Can be customized

It has good stability under high temperature environment. The resistance film will not be activated and mixed with other elements at high temperature. Using its characteristics, the metal oxide film can be used in high temperature environment for a long time.

Special conductive film enhances capability of withstanding.Coating insulating paint is approved by UL94V-0.It serves as an absorber of harmful surge energy,so to prevent hazard of fire and circuit damage caused by surge energy.

Special conductive film enhances capability of withstanding.Coating insulating paint is approved by UL94V-0.It serves as an absorber of harmful surge energy,so to prevent hazard of fire and circuit damage caused by surge energy.

The alloy wire is wound on the heat-resistant porcelain body, and the surface is coated with heat-resistant, moisture-resistant, non-corrosive non-combustible paint for protection. Its characteristics are as follows: excellent heat resistance, small temperature coefficient, light weight, short-term overload resistance, low noise, and small change in resistance value over the years.

1. Change the circuit by connecting the contacts.
2. Requires "after-the-fact design" of new point connections.
3. At two points where the PCB board cannot be connected, the circuit must be crossed or skipped.

In high vacuum, the ceramic rod is covered with a special metal film, and the ends of the ceramic rod are plated with precious metals to ensure low noise and low temperature coefficient. Widely used in high-end audio, computer, computer, testing equipment, instrumentation, automatic control, national defense and space equipment, etc.

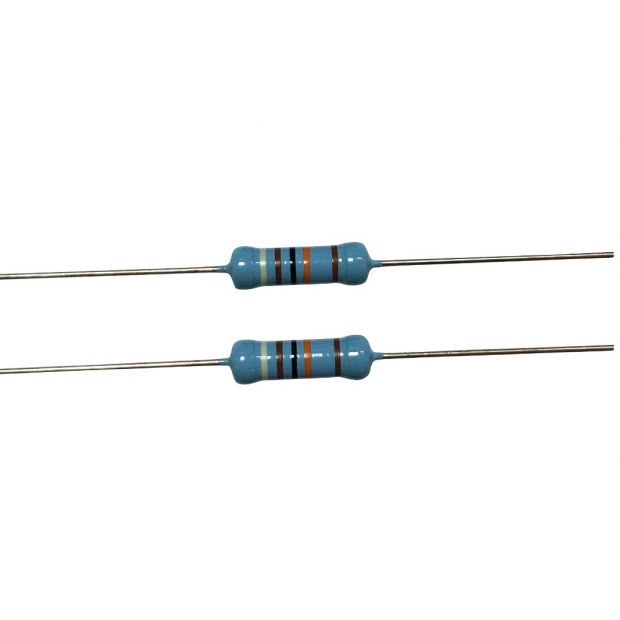

Metal glaze as the base Ultra-miniature size High power High operating voltage High pulse load resistance High temperature/high humidity environment
